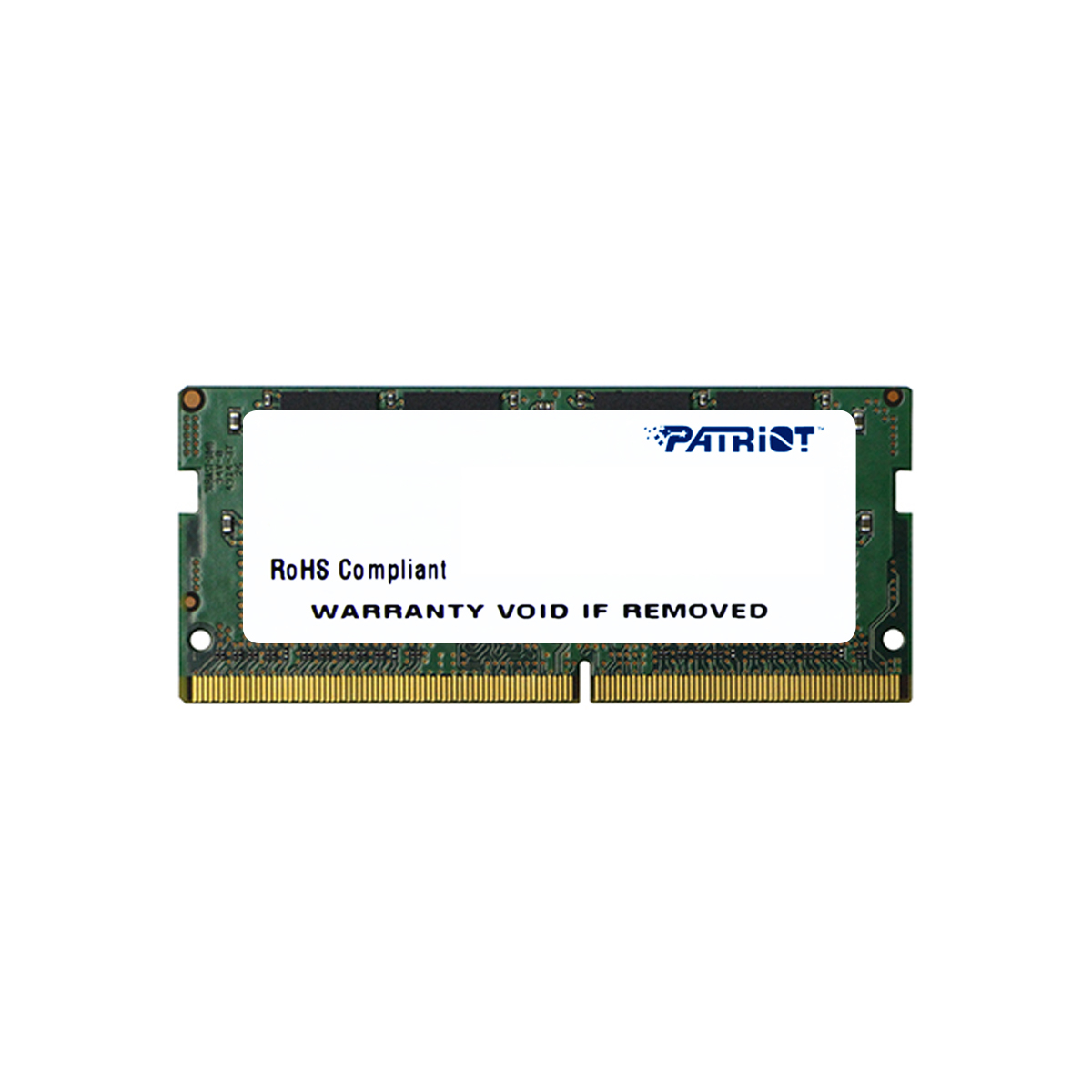

Patriot Signature Line 16GB DDR4-2666 SODIMM PC4-21300 CL19, 1.2V

KINGSTON 32GB 2666MHz DDR4 (KVR26S19D8/32) ram pomnilnik, ponuja kapaciteto 32GB hitrega pomnilnika vrste DDR4. Frekvenca delovanja ram pomnilnika je 2666 MH, ki deluje na latencah 19-19-19 pri napajalni napetosti 1.2V.

KINGSTON SODIMM 8GB 3200MHz DDR4 KVR32S22S8/8 ram pomnilnik

Kingston KVR32S22S8/8 1G x 64-bitni (8GB) DDR4-3200 CL22 SDRAM (sinhroni DRAM), 1Rx8, non-ECC, pomnilniški modul, ki temelji na osmih 1G x 8-bitnih komponentah FBGA. SPD je programiran na standardno časovno zakasnitev JEDEC DDR4-3200 22-22-22 pri 1,2 V. 260-pinski DIMM uporablja zlate kontakate.

• napajanje: VDD = 1.2V Typical
• VDDQ = 1.2V običajno
• VPP = 2.5V običajno
• VDDSPD = 2.2V to 3.6V
• Nominal and dynamic on-die termination (ODT) for data, strobe, and mask signals
• Low-power auto self refresh (LPASR)
• Data bus inversion (DBI) for data bus
• On-die VREFDQ generation and calibration
• Single-rank
• On-board I2 serial presence-detect (SPD) EEPROM
• 16 internal banks; 4 groups of 4 banks each
• Fixed burst chop (BC) of 4 and burst length (BL) of 8 via the mode register set (MRS)
• Selectable BC4 or BL8 on-the-fly (OTF)
• Fly-by topology
• Terminated control command and address bus
• PCB: višina 1.18" (30.00mm)
• RoHS Compliant and Halogen-Free

*slike so simbolične
