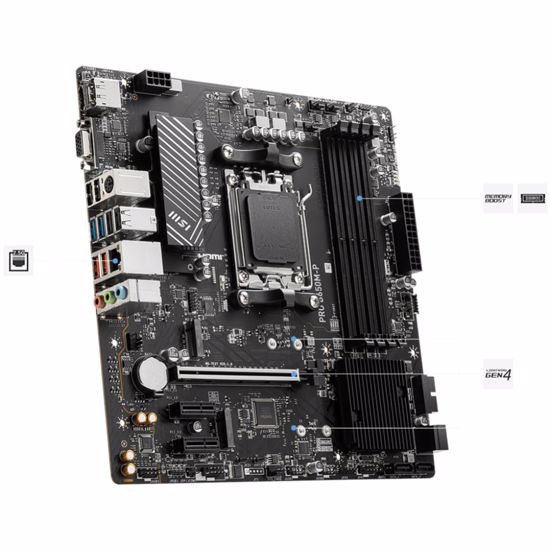

Osnovna plošča AM5 MSI PRO B650M-P microATX 1xVGA 1xHDMI 2.1 1xDisplayPort 1.4

Blagovna znamka: Msi
Dobavljivost: Ni na zalogi, naročeno
SKU: 7100953
€140,76 z ddv

>>>   PREVERI SVOJ LIMIT   <<<

Supported processor sockets:
- Socket AM5
Compatible processor series:
- AMD Ryzen 9 7th Gen
- AMD Ryzen 7 7th Gen
Processor manufacturer:
- AMD
Processor socket:
- Socket AM5
PC health monitoring:
- Fan
Audio output channels:
- 7.1 channels
Motherboard chipset family:
- AMD
Audio chip:
- Realtek ALC897
Motherboard form factor:
- micro ATX
Motherboard chipset:
- AMD B650
Windows operating systems supported:
- Windows 11 x64
Supported memory clock speeds:
- 5200
- 5000
- 5600
- 6000
- 4800
- 5800
- 5400
Maximum internal memory:
- 192 GB
Supported memory types:
- DDR5-SDRAM
Number of memory slots:
- 4
Depth:
- 243.8 mm
Width:
- 243.8 mm
LAN controller:
- Realtek RTL8125-BG
Wi-Fi:
- No
Ethernet LAN:
- Yes
Ethernet interface type:
- 2.5 Gigabit Ethernet
Front panel audio connector:
- Yes
USB 2.0 connectors:
- 4
USB 3.2 Gen 1 (3.1 Gen 1) connectors:
- 2
USB 3.2 Gen 2 (3.1 Gen 2) connectors:
- 1
ATX Power connector (24-pin):
- Yes
Front panel connector:
- Yes
Chassis intrusion connector:
- Yes
CPU fan connector:
- Yes
BIOS type:
- UEFI AMI
Supported storage drive interfaces:
- M.2, SATA
RAID levels:
- 1
- 10
- 0
Ethernet LAN (RJ-45) ports:
- 1
DisplayPort version:
- 1.4
DisplayPorts quantity:
- 1
USB 2.0 ports quantity:
- 4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity:
- 2
Microphone in:
- Yes
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity:
- 2
Headphone outputs:
- 1
Line-in:
- Yes
HDMI ports quantity:
- 1
HDMI version:
- 2.1
VGA (D-Sub) ports quantity:
- 1
Number of M.2 (M) slots:
- 2
PCI Express x16 (Gen 3.x) slots:
- 1
