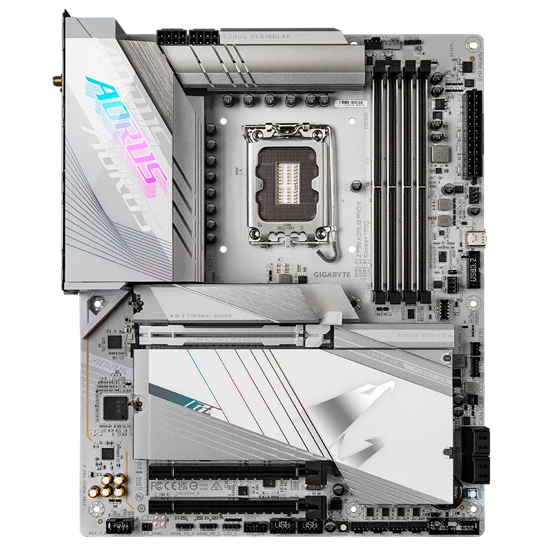

GIGABYTE Z790 AORUS PRO X, DDR5, SATA3, USB3.2Gen2x2, DP, PCI-E 5.0, 5GbE, WIFI 7, LGA1700 ATX

PODNOŽJE: INTEL LGA1700
ZA PROCESORJE:  Intel 12/13/14th Generation Core™ i7/i5/i3/Pentium/Celeron
FORMAT: ATX Form Factor 30.5 x 24.4 cm
VEZNI ČIP: Intel Z790 Express
POMNILNIK:
4 x DDR5 (8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000MHz) do skupno 192GB kapacitete, dual channel in Extreme Memory Profile (XMP) podpora, Support for non-ECC / ECC Un-buffered DIMM (operate in non-ECC mode), Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode), Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
GRAFIKA: preko CPU
RAID: DA (0,1,5,10)
RAZŠIRITVENE REŽE:
1 x PCIe 5.0/4.0/3.0 x16 (x16 mode)
1 x PCIe 4.0 x16 (x4 mode)
1 x PCIe 3.0 x16 (x4 mode)
MREŽNA KARTICA: Realtek 5GbE LAN chip (5 Gbps/2.5 Gbps/1 Gbps/100 Mbps) + MediaTek Wi-Fi 7 MT7927, RZ738  802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz + BLUETOOTH 5.3
ZVOČNA KARTICA: Realtek High Definition Audio Audio CODEC
NOTRANJI PRIKLJUČKI:
1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x CPU fan header
1 x CPU fan/water cooling pump header
4 x system fan headers
2 x system fan/water cooling pump headers
3 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
5 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 2x2 support
1 x USB Type-C® port (DisplayPort), with USB 2.0 support (Only available with the Intel® HD Graphics Processors.)
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x noise detection header
2 x Thunderbolt™ add-in card connectors
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/ GC-TPM2.0 SPI V2 module only)
1 x Q-Flash Plus button
1 x reset button
1 x reset jumper
2 x temperature sensor headers
1 x Clear CMOS jumper
ZUNANJI PRIKLJUČKI:
2 x USB 2.0/1.1 ports
2 x SMA antenna connectors (2T2R)
4 x USB 3.2 Gen 1 ports
1 x DisplayPort In port
1 x HDMI port
2 x USB 3.2 Gen 2 Type-A ports (red)
1 x USB Type-C® port, with USB 3.2 Gen 2x2 support
1 x USB Type-C® port (DisplayPort), with USB 3.2 Gen 2 support
1 x RJ-45 port
1 x optical S/PDIF Out connector
2 x audio jacks
DODATNO:

iTE® I/O Controller Chip
H/W Monitoring
Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control
Noise detection
BIOS
1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
Support for GIGABYTE Control Center (GCC)
Support for Q-Flash
Support for Q-Flash Plus
Support for Smart Backup
Bundled Software
Norton® Internet Security (OEM version)
LAN bandwidth management software

Spletna stran proizvajalca: https://www.gigabyte.com/Motherboard/Z790-AORUS-PRO-X#kf
